T-Varia Basic Equipment Generator

Contains T-Varia control unit generator with load unit (11035050) and generator drive unit (11035110). The generator drive unit is used for the mounting and the stepless drive of the exchangeable generator. The system panel generator control offers all connection possibilities for the required cabling. The battery voltage is shown on a display, as is the continuously variable speed. A conventional car battery is required for operation (not included in the scope of delivery) as well as a 230 V supply.

With this modular system, original automotive generators can be operated with three different controller types. The generator control system panel provides all the connection options for the required wiring. The generator drive unit is used to accommodate the easily and quickly exchangeable generators.

  • Overview
  • Features
  • Wiring the components in accordance with the circuit diagram
  • Use of workshop-standard measuring devices
  • Digital displays for battery voltage and generator speed
  • 19 x connectors in 4mm safety version, 10 x connectors in 6mm safety version
  • Didactically prepared documents with worksheets and the associated solutions
  • learning content
  • Function of the generator, function of the regulator, function of the electrical circuit
  • Operating situations with excitation current, charging current and load current
  • Battery charging with the generator
  • Loading the generator, three-phase generator test
  • Naming electrical and electronic components, assemblies and systems
  • Measure and assess electrical quantities and signals
  • Equipment

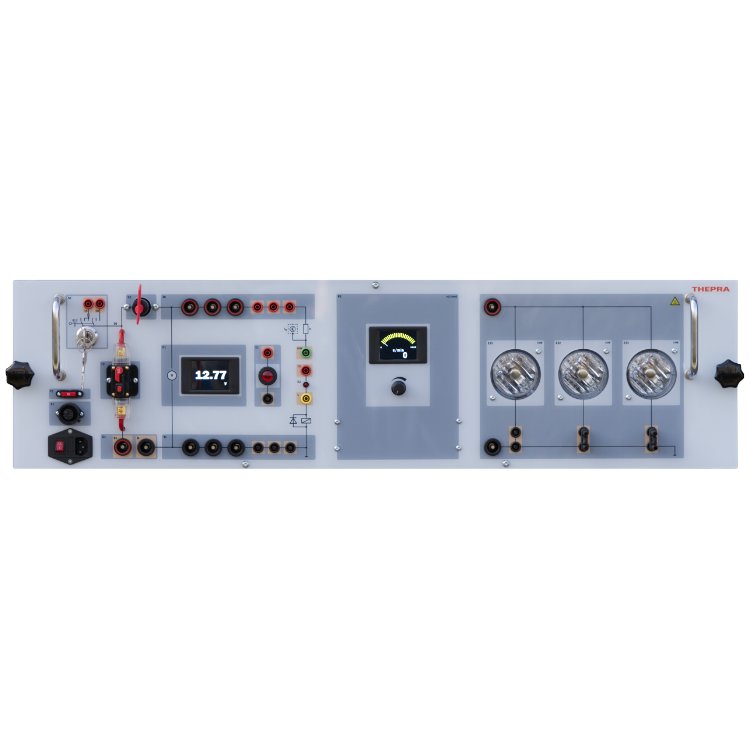

  • T-Varia system panel matching the T-Varia equipment trolley. Version with coloured digital print behind acrylic glass, circuit diagrams and symbols
  • 1 x integrated control for infinitely variable drive motor
  • 2 x digital displays for battery voltage and generator speed
  • Consumer and load unit, 3 x switchable lamps, 2 x indicator lamps
  • 1 x blade fuse, 1 x main fuse (can be switched on again), 1 x battery disconnect switch, 1 x ignition start switch with key

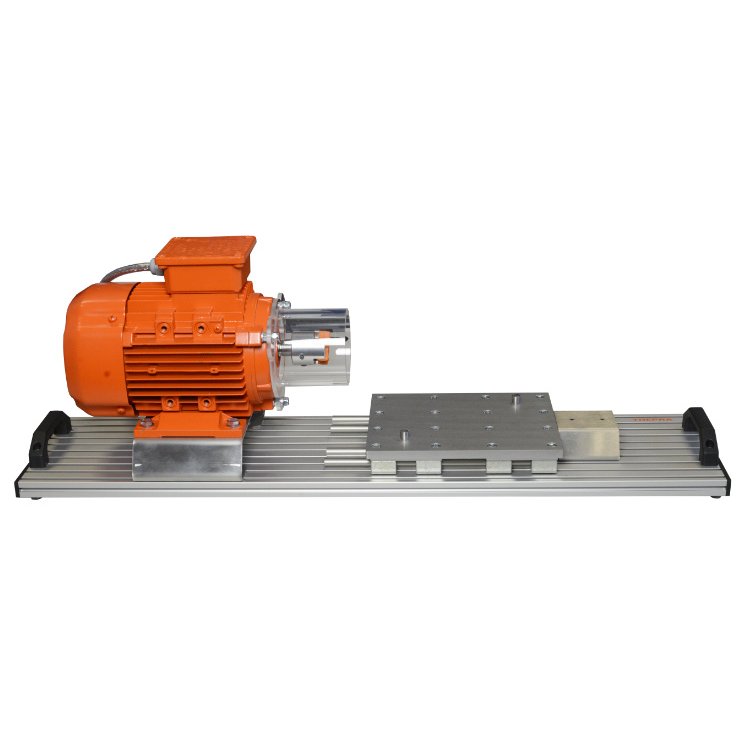

  • Generator drive unit on aluminium profile plate for use on the equipment trolley tabletop. Mounting of alternatively: Generator with transistor controller, generator with multifunction controller or generator with LIN bus controller
  • Cable set complete with matching laboratory cables in safety version

Category: Electrics and Electronics
Item number: 11035040
EQF-Level‍: Level 2Level 3
Power Supply‍: 12 V vehicle battery 110 V - 240 V / 50 - 60 Hz
Product weight‍: 7,50 Kg
Dimensions ( length width height )‍: 96,00 25,00 52,00 cm
PDF Manual‍: 66 pages
