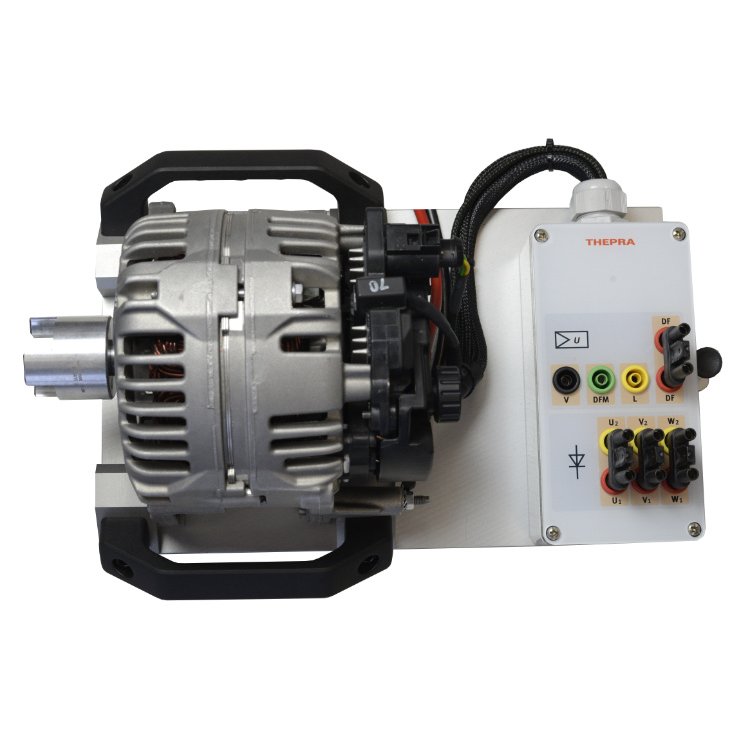

Generator with multifunction controller

Ready for immediate use and fully functional vehicle generator. Mounted on a slide for use with the T-Varia generator drive unit. The integrated measuring box contains 5 x measuring and connection sockets (DF, DFM, L, V), as well as the outgoing phases U, V, W with 6 x measuring and connection sockets.

Fully functional original vehicle generator with multifunction controller ready for immediate use.

  • At a glance
  • Features
  •  Original vehicle generator prepared for training purposes
  •  Mounted on slide with quick-change mount and locking pin
  •  Quick-change coupling on drive shaft
  •  2 x large handles for easy handling
  •  Didactically prepared documents with worksheets and the associated solutions
  • Learning content
  •  Function of the generator, function of the regulator, function of the electrical circuit
  •  Operating situations with excitation current, charging current and load current
  •  Battery charging with the generator
  •  Loading the generator, three-phase generator test
  •  Naming electrical and electronic components, assemblies and systems
  •  Measure and assess electrical quantities and signals
  • Equipment
  •  Vehicle generator with multifunction controller for use with "T-Varia basic generator equipment" 11035040
  •  Break-Out Box with 11 x connectors in 4mm safety version
  •  Interruption controller contact DF
  •  Interruption of the internal diodes at U, V, W optionally enables external rectification of the current with system panel "T-Varia rectification" 11035060
  •  Fixed positive and negative leads in safety design



Manufacturer:
Category: Others and Accessories
Item number: 11035130
EQF-Level‍: Level 2Level 3
Power Supply‍: 12 V vehicle battery
Product weight‍: 8,00 Kg
PDF Manual‍: 66 - 110 pages
