Option Lighting Board: Driver's Door

Price on application

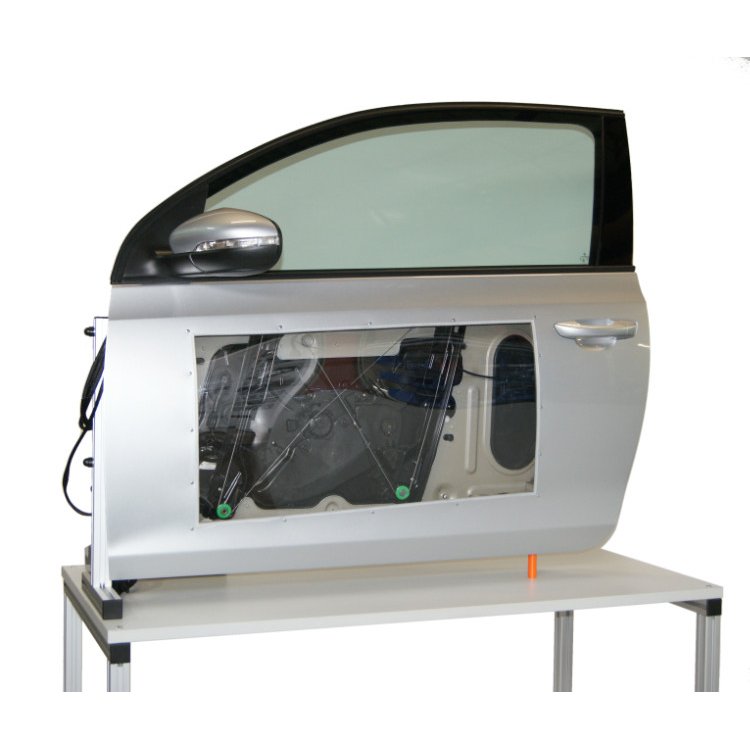

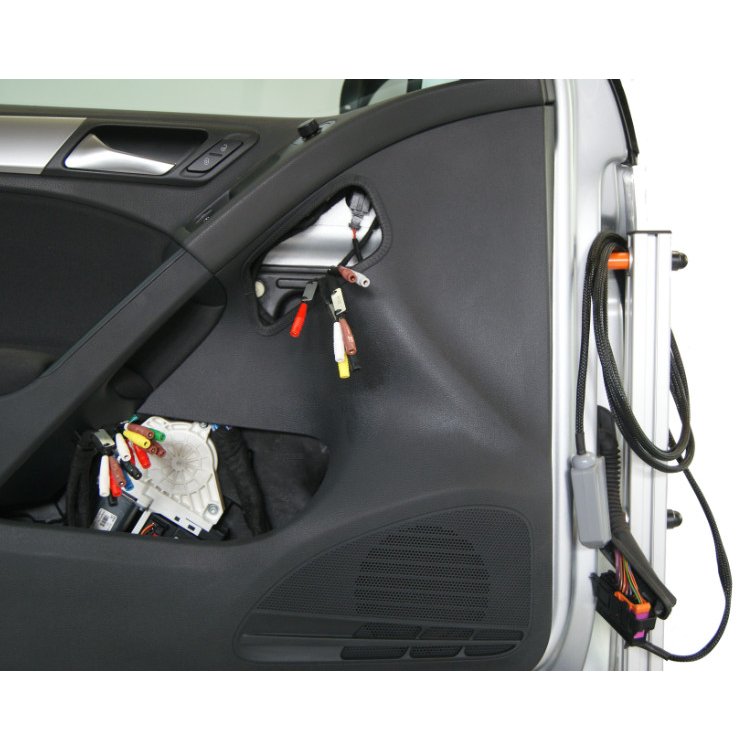

Optional component to Lighting Board Central Electrics CAN-Bus wired. The driver's door is mounted on a mobile laboratory table and equipped with fault switching. All electrical components are accessible and equipped with pin-outs to measure. Breakout box for door control unit with 38 x jumpers with measuring interface.
Delivery time 6 - 8 weeks

Optional component to Lighting Board Central Electrics CAN-Bus wired. The driver's door is mounted on a mobile laboratory table and equipped with fault switching. All electrical components are accessible and equipped with pin-outs to measure. Breakout box for door control unit with 38 x jumpers with measuring interface.

  • At a glance
  • Features
  • Original parts, power windows, door control unit, central locking, child lock, emergency lock, door lock
  • Mirrors electrically adjustable, heated, mirror turn signal

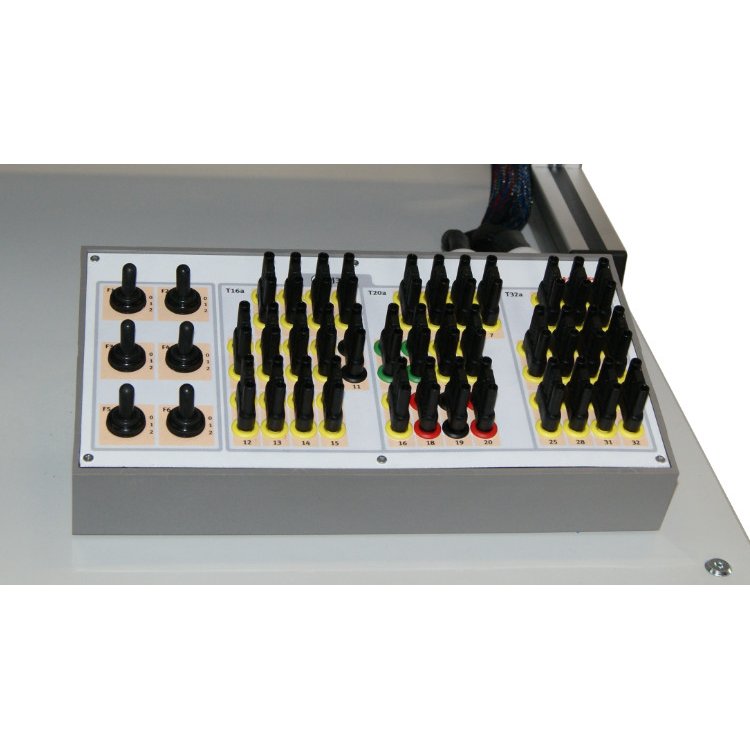

  • Breakout box for door control unit with all used pins of the controller, 38 x jumpers equipped with measuring tap
  • Fault circuit with 12 x system errors
  • The window regulator mechanism and internal components are visible and protected by a polycarbonate cover
  • Compact device build, mobile, for lab and workshop practice
  • Learning Objectives
  • Working with original schematics and specify problem-oriented connector pins on components and control unit
  • Making screen-shots of all signals, all control voltages and the CAN data-bus with a digital oscilloscope and storing them for customer-specific documentations
  • Recording CAN-bus signals with the oscilloscope and assessing signal levels
  • Actuator diagnosis e.g. via VCDS
  • Control of components through e.g. PCAN-Dongle USB, controlling using its own switches
  • Visualization of the CAN data transmission with e.g. PCAN-Dongle
  • Practical errors: detect and evaluate cable breaks and corrosion resistances
  • Self-diagnosis with OBD diagnostic tool from Lighting Board Central Electrics (original tester)
Manufacturer:
Category: proline Series
Item number: 16900960
EQF-Level‍: Level 2Level 3
Keyword‍: Networked Systems
Product weight‍: 55,00 Kg
Dimensions ( length width height )‍: 142,00 71,00 193,00 cm
