Automotive HV-Safety Trainer

Price on application
Electude E-LearningInnovative laboratory trainer for safety in handling HV vehicles. With this flexible system you can safely train different manufacturer methods of activation. In addition, insulation testing and equipotential bonding measurements with workshop measuring instruments are possible. Original maintenance plug, 5 inch touch screen display for control and display of all information, error circuit with numerous work orders. Use with real 202 V (at 10mA) or 20.2 V low voltage. Laboratory plate in desk housing for use lying on the table or in DIN A4 support frame. Detailed documentation and extensive worksheets for teachers and students.
Delivery time 6 - 8 weeks

Innovative laboratory trainer for safety in handling HV vehicles. With this flexible system you can safely train different manufacturer methods of activation. In addition, insulation testing and equipotential bonding measurements with workshop measuring instruments are possible.

  • Overview
  • Features

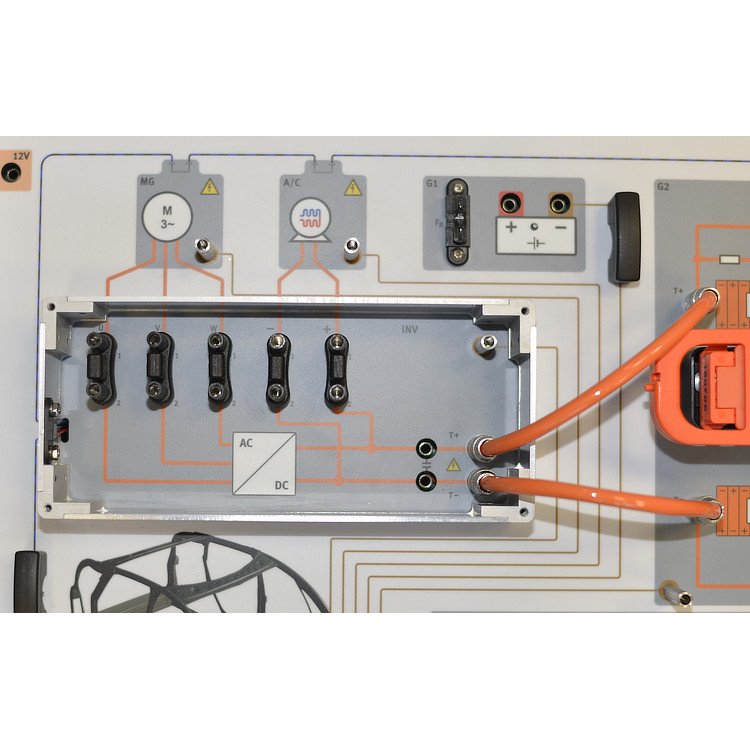

  • Clear representation of the components and circuit with coloured imprint

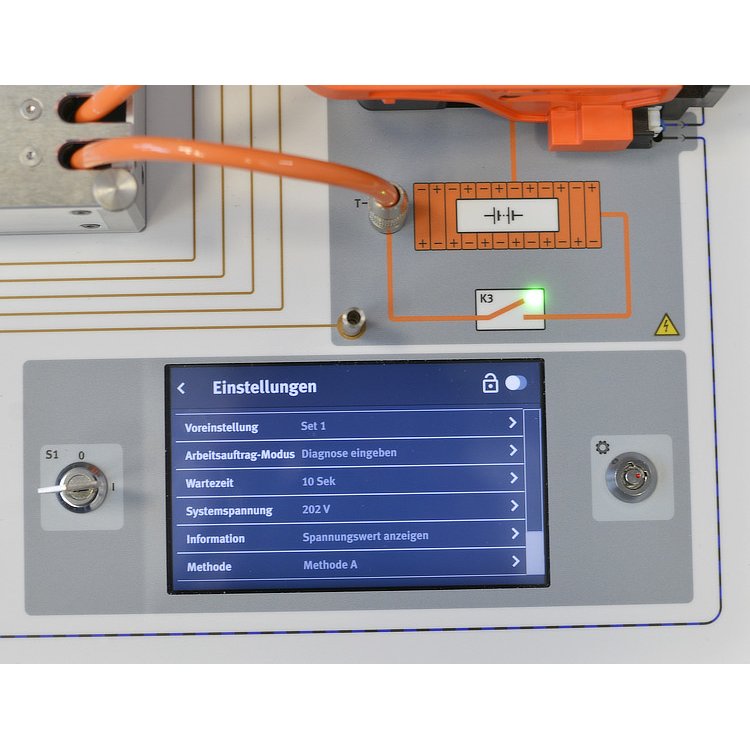

  • 5 inch touch screen display for control and display of all information, multilingual

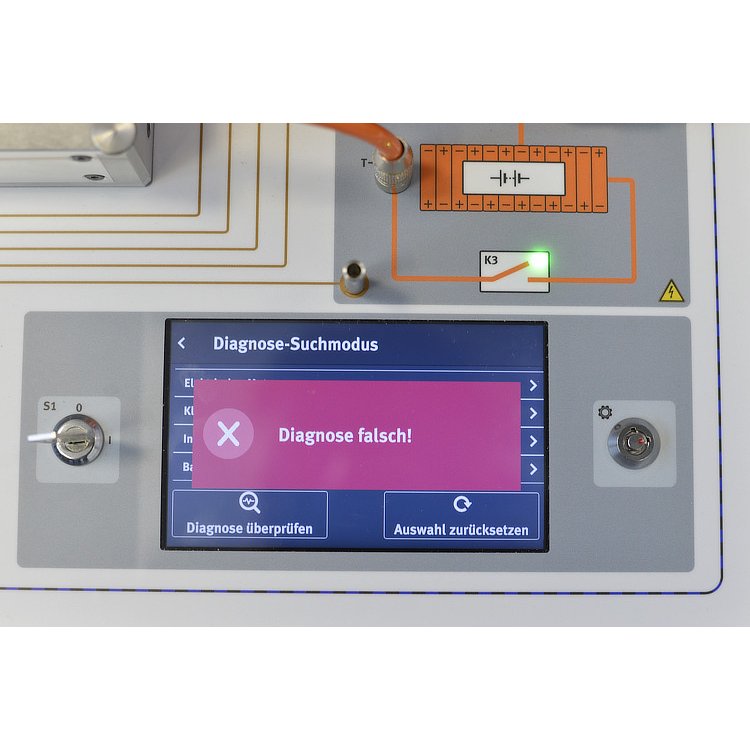

  • Error circuit with 10 practical work orders. Diagnostic mode for troubleshooting.
  • Insulation test: Motor U V W, climate A/C + -, battery HV + - (cable orange with shielding, one additional cable for fault simulation)
  • Equipotential bonding measurements on all individual components
  • Special mode for measuring the PWM inverter output signal under voltage
  • Use with real 202 V (under 10mA) or 40 V low voltage
  • Original maintenance plug, base lockable with padlock, pilot line measurable
  • Extensive documentation. Digital Worksheets Electude E-Learning System available
  • Learning content
  • Apply safety rules: disconnect (various methods), secure against reconnection, ensure that there is no voltage, log the steps
  • Carrying out insulation tests and equipotential bonding measurements with workshop measuring instruments
  • Troubleshooting and diagnostics
  • Equipment
  • Laboratory trainer in console housing for use on the table or in DIN A4 support frame
  • 5 inch touch screen display with multilingual control software, 2 x key switches, original maintenance plug
  • 5 x ground contact points for equipotential bonding, 2 x sockets for power supply with 12 VDC
  • 23 x connection sockets for measuring, 7 x with jumper plug
  • 3 x HV-cable orange with shielding, one of them with defect

Manufacturer:
Category: Lab-Trainers
Item number: 12045100
EQF-Level‍: Level 2Level 3
E-Learning‍: Electude
Power Supply‍: 10 - 15 V DC (3 A)
Keyword‍: E-Mobility
Shipping weight‍: 5,50 Kg
Product weight‍: 3,50 Kg
Dimensions ( length width height )‍: 29,70 39,90 15,00 cm
