Airbag training modell

SRS airbag system, original parts VW Golf 6. The arrangement is of the components with the dashboard is according to the vehicle. The connections of all functionally relevant sensors and actuators and the control units and components are original compounds, such as in the vehicle. This allows you to work with original manufacturer's documentation and schematics. OBD diagnostic interface.

The training model consists of all the original components of a Golf 6 airbag system. The training equipment contains non-ignitable airbags and belt tensioners. Thus, a safe handling and troubleshooting is possible. The connections of all functionally relevant sensors and actuators and the control units and components are original connections as in the vehicle. This allows working with original manufacturer documents and circuit diagrams. These components are exposed for easy access. Standard diagnostic testers can be connected via the OBD interface.

  • At a glance
  • Characteristics
  •   Fully functional airbag training model, original components VW Golf 6, specially prepared for training purposes

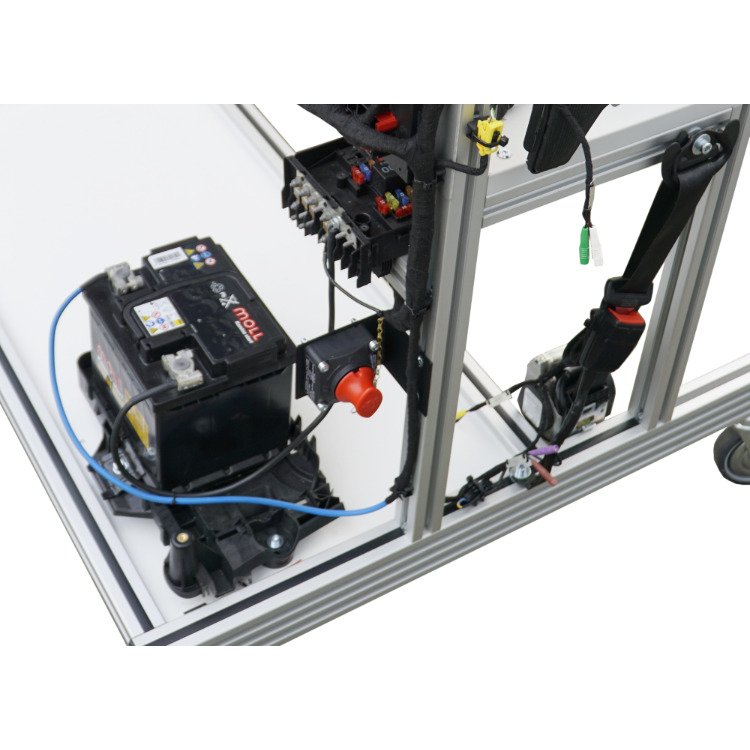

  •   Aluminum frame profile on castors with extra-large tabletop, control panels, OBD connector

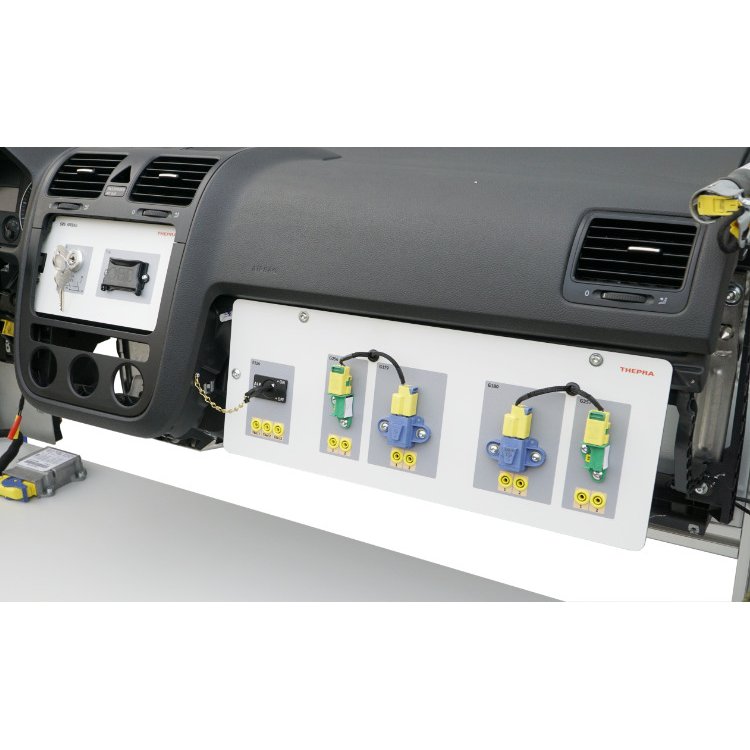

  •   Original components: Airbag control unit, Driver airbag, Coil spring, Steering column electronics, Passenger airbag, Side airbag, Crash sensor for front and rear side airbag, Instrument cluster with indicator lamps, Belt pretensioner for driver and passenger, Belt buckle for driver and passenger with belt buckle retainer, Passenger seat occupancy recognition (for belt check), Switching off the passenger airbag via key-switch, OBD Diagnosis connection

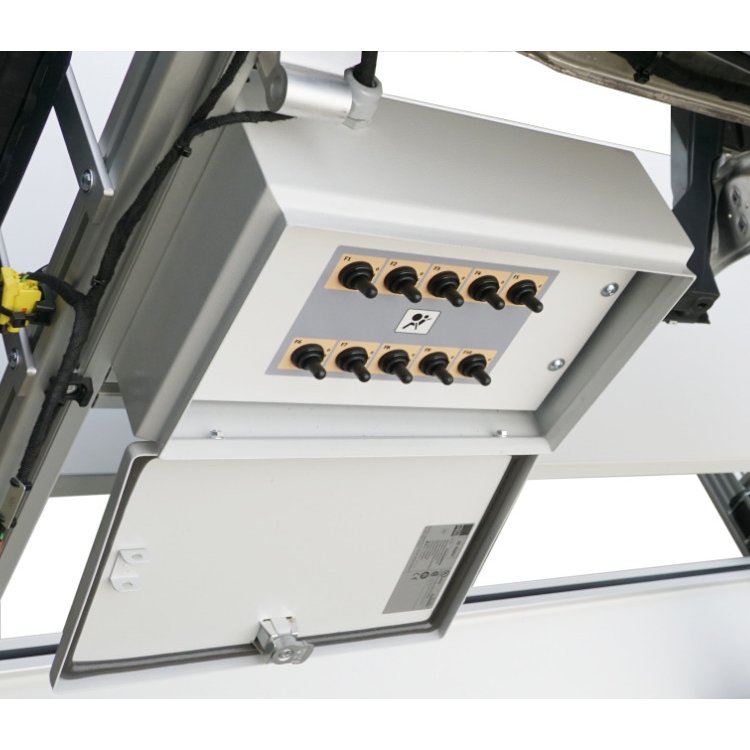

  •   Fault switchbox separately mounted, lockable, 10 error switches, 20 errors
  •   Pin-outs on all sensors / actuators, 4mm sockets in the colors of the original circuit diagram

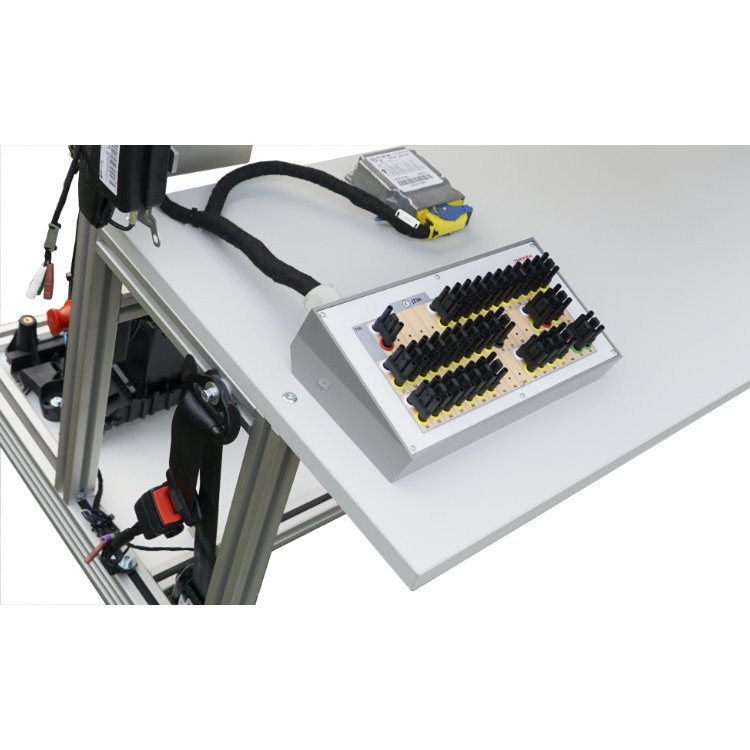

  •   Interruption box with all pins of the controller, 2 x 34 sockets with short circuit plugs and measuring interface, hardwired. Allows diagnosis by single separating signals / components. In addition transitional and load resistor or short circuit
  • Optional supplements
  •   VAG-COM Diagnostic System (VCDS) - powerful diagnostic tool (No. 38079135)



Manufacturer:
Category: In the Workshop
Item number: 79104250
EQF-Level‍: Level 2Level 3
Power Supply‍: 12 V vehicle battery
Product weight‍: 105,00 Kg
Dimensions ( length × width × height )‍: 160,00 × 93,00 × 166,00 cm
PDF Manual‍: 57 pages
