T-Varia Engine Sensors

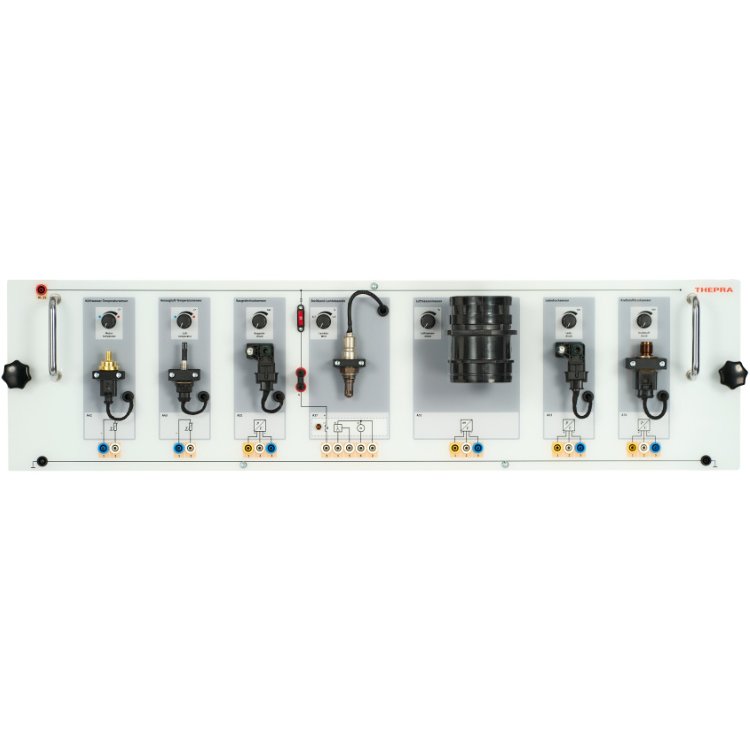

Electude E-LearningWith this system panel you connect motormanagement sensors to the motor control unit according to the circuit diagram. Each sensor can be operated, controlled and measured individually. All for the intended operation of an MPI, FSI or TDI engine are included. The system plate is equipped with the following original sensors: engine temperature (coolant), air temperature, intake manifold pressure, heated lambda sensor, air mass meter, boost pressure, fuel pressure. 7 x potentiometer and integrated simulation function of the correct signals. 22 x connections in 4mm safety design for wiring and measurement. In addition, international symbols free of confusion are printed on the connections.

This module panel is part of the T-Varia Starter Set Engine Management. This unit can be used in conjunction with the "Engine Control Unit", "Engine Drive Unit" and one of the engine actuator panels "MPI, FSI or TDI" and integrated into the system.

  • Overview
  • Features
  •  Connecting of all original automotive components according to the wiring diagram
  •  Each sensor can be operated, controlled and measured individually
  •  Each sensor is adjustable and delivers correct signals
  •  All components required for the intended operation of a MPI, FSI or TDI motor are included
  •  Terminal designations with schematic imprint
  •  Use of standard measuring instruments
  •  23 x connectors in 4mm safety version, 1 x with jumper plug, for wiring and for measuring
  •   Extensive digital worksheets available for Electude E-Learning system *
  • Learning content
  •  Working with schematics
  •  Identify electrical and electronic components, assemblies and systems
  •  Select and use electrical measuring and testing equipment
  •  Measurement and evaluation of electrical values and signals
  •  Documenting work results and evaluating them by comparing them with calculated values and manufacturer specifications
  • Equipment
  •  T-Varia system panel 956mm x 250mm x 6mm, suitable for T-Varia trolley
  •  Design with colored digital print behind 2mm thick plexiglass, schematics and symbols, two chrome-plated handles for easy handling, as well as backside cover
  •  Original engine temperature sensor, potentiometer for signal adjustment
  •  Original intake air temperature sensor, potentiometer for signal adjustment
  •  Original intake manifold pressure sensor, potentiometer for signal adjustment
  •  Original broadband lambda sensor, potentiometer for signal adjustment
  •  Original mass air flow meter, potentiometer for signal adjustment
  •  Original boost pressure sensor, potentiometer for signal adjustment
  •  Original fuel pressure sensor, potentiometer for signal adjustment



Manufacturer:
Category: T-Varia Connect
Item number: 11041050
EQF-Level‍: Level 2Level 3
E-Learning‍: Electude
Power Supply‍: 13,8 V DC (40 A)
Keyword‍: Motormanagement
Product weight‍: 6,50 Kg
Dimensions ( length × width × height )‍: 96,00 × 25,00 × 25,00 cm
PDF Manual‍: 11 / 105 pages
