Automotive Sensors Trainer

Price on application

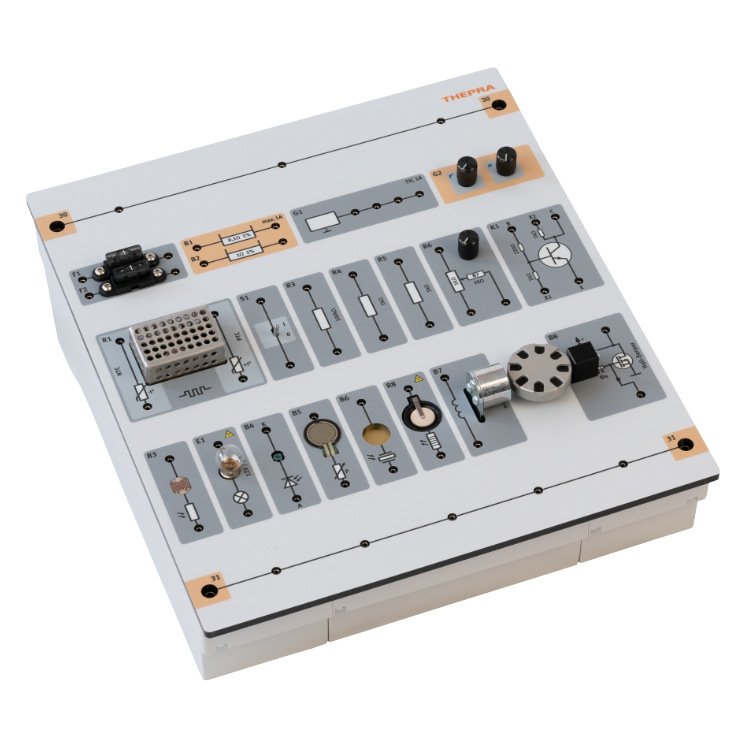

Electude E-LearningCompact, versatile learning system for automotive sensor technology - basic diagnostics. All components can be freely wired according to real motor vehicle electrical circuits. Contains: 2 x fuse, switch, 5 V DC power source, 2 x precision shunt, pulse-width-frequency generator to drive the sensor wheel, 2 x temperature-dependent semiconductor resistors (NTC, PTC), 3 x resistors, potentiometer, NPN power transistor, photo resistor, lamp, photo diode / photo element, pressure / force sensor, piezo sensor as knock sensor, hot film sensor, induction sensor, Hall sensor and sensor wheel. Laboratory front panel with console housing for use on the table or in A4 desk frames. Extensive digital worksheets available for Electude E-Learning System.
Delivery time 6 - 8 weeks

Innovative laboratory trainer for automotive sensor technology. The components can be freely wired to numerous typical automotive electrical circuits.

  • Overview
  • Features
  • Clear presentation of available components with colored imprint
  • Wire any circuit - as with conventional plug-in modules
  • Electronically protected components
  • Extensive digital worksheets available for Electude e-learning system
  • Learning content
  • Getting to know vehicle-typical sensors according to equipment
  • Interpret sensor-typical voltage values in vehicle-related circuits
  • Multimeter and oscilloscope as measuring devices
  • Equipment
  • Laboratory trainer in console housing for use on the table or in DIN A4 support frame
  • 2 x fuse, switch, 5 V DC voltage source, piezo sensor as knock sensor, hot film sensor, induction sensor, Hall sensor and encoder wheel
  • 2 x precision shunt, pulse width frequency generator to control encoder wheel, 2 x temperature dependent semiconductor resistors (NTC, PTC)
  • 3 x resistors, potentiometer, NPN power transistor, photo resistor, lamp, photodiode/photo element, pressure/force sensor
  • 54 x sockets for wiring and measuring, 4 x sockets for power supply

Manufacturer:
Category: Lab-Trainers
Item number: 12020150
E-Learning‍: Electude
EQF-Level‍: Level 2Level 3Level 4
Power Supply‍: 10 - 15 V DC (3 A)
Product weight‍: 2,00 Kg
Dimensions ( length width height )‍: 29,70 26,60 12,00 cm
