Assembly Kit High-Voltage Cables

Price on application
This training system consists of a mounting plate and a complete, high-quality tool set. Everything fits into a practical carrying case. The work assignments contain numerous interesting hours of practical exercises. The students produce many different high-voltage cable connections themselves and then check them metrologically for equipotential bonding. Incl. a set of expendable materials for 6 students in a Systainer.

This training system consists of a mounting plate and a complete, high-quality tool set. Everything fits into a practical carrying case. The work assignments contain numerous interesting hours of practical exercises. The students produce many different high-voltage cable connections themselves and then check them metrologically for equipotential bonding. Incl. a set of expendable materials for 6 students in a Systainer.

  • At a glance
  • Features
  • Numerous practical exercises on high-voltage and earth lines
  • Complete system with mounting plate, high-quality tool set and expendable material
  • Instantly ready for use
  • Use of workshop-standard inspection and test equipment
  • Didactically prepared documents with tasks and worksheets as well as the associated solutions
  • Learning content
  • Identifying and allocating components
  • Handling various tools
  • Making HV cables and EMC cable glands yourself
  • Stripping, crimping, screwing
  • Select and use electrical measuring and test equipment
  • Checking and assessing the potential equalisation of the self-made connections
  • Documenting work results and evaluating them by comparing them with calculated quantities and manufacturer's specifications
  • Equipment

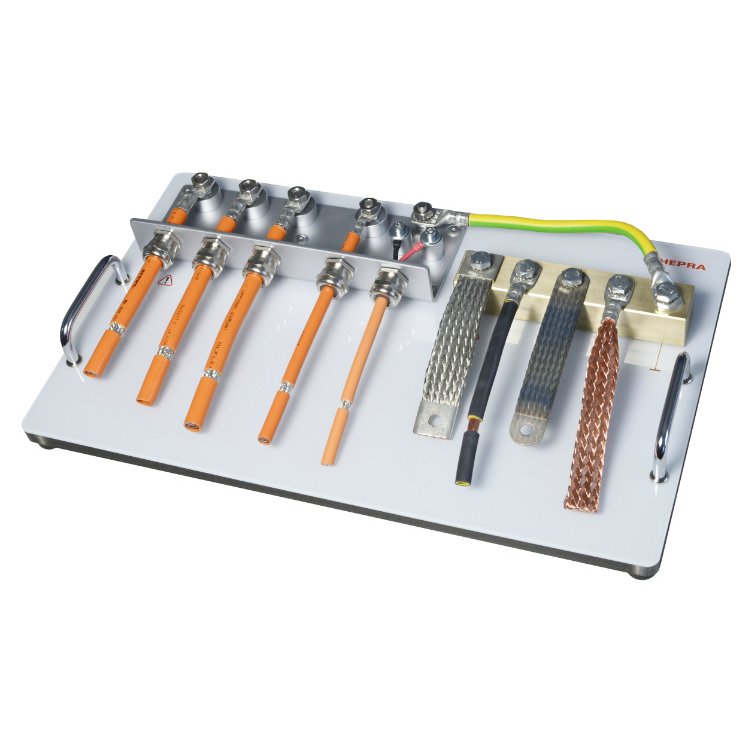

  • Carrying case incl. tool kit: Side cutters, Crimping pliers small, Crimping pliers large, Cable cutter large, Steel rule, Stripping tool, Torque spanner, Mounting sleeve, 4 x open-end spanner
  • Mounting plate for use lying on the table, with rubber feet
  • Mounting bracket for EMC cable glands, connection block for earth points
  • 4 x various EMC cable glands
  • 4 x various HV cables orange
  • 5 x various earth connections
  • 2 x pre-assembled connections with poor measured values

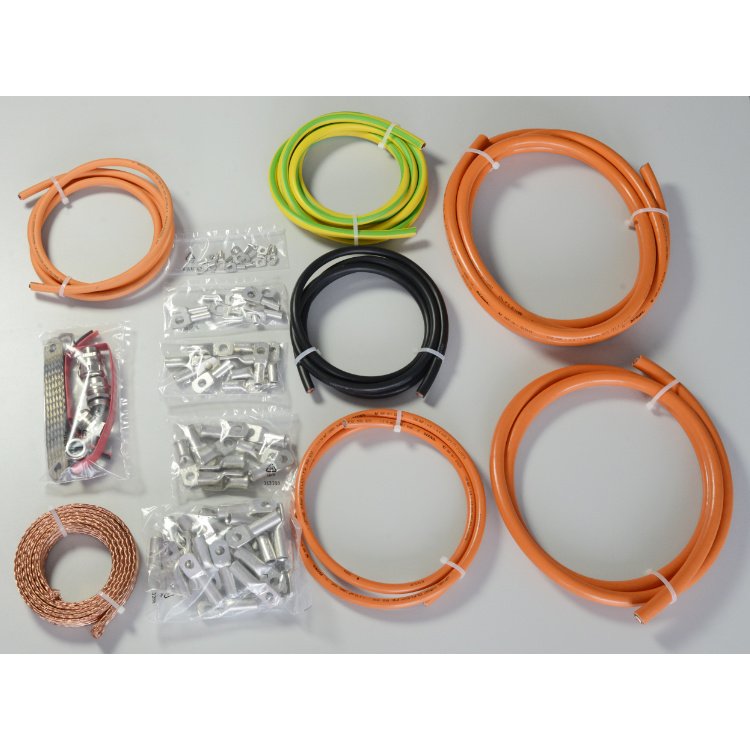

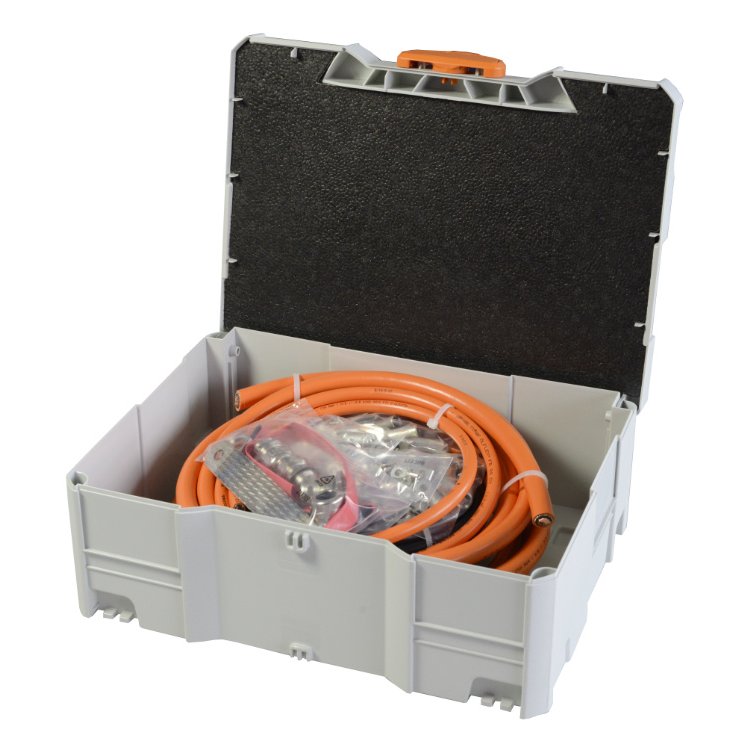

  • Set of expendable materials for 6 students (in Systainer)
