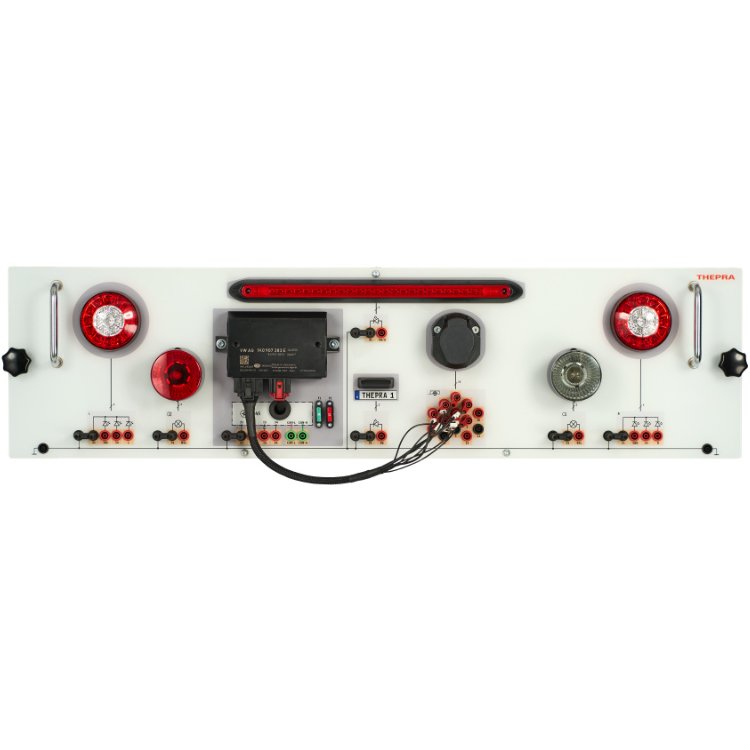

T-Varia Rear Lighting CAN-Bus

This module panel expands your T-Varia system to all standard rear lights of a modern car. In conjunction with the T-Varia control panel "Controls CAN-Bus" or "Bus Technology Basics", this unit can be used and connected according to the circuit diagram.

• At a glance
• Features
•  Connect all original automotive components according to the wiring diagram
•  Crosslinking of the system by connecting power supply and bus lines of all control units, thus all lines are measurable and can be separated for diagnostic purposes
•  Terminal designations according to DIN 72552, with schematic print
•  Quick and easy insertion of hidden practical errors in the circuit design, also to be combined with faults from the T-Varia control panel "Controls CAN-Bus"
•  Use standard workshop measuring and testing devices for diagnosis and troubleshooting
•  43 x connectors in 4mm safety design, 4 x with a bridge plug, for wiring and for measuring
•  Integration of the CAN-Bus trailer control unit in the networked system
•  Educational documents with tasks and worksheets and associated solutions
• Learning Objectives
•  Read and use vehicle wiring diagrams
•  Data communication with CAN-Bus to trailer
•  Identify electrical and electronic components, assemblies and systems
•  Testing and maintenance of electrical and electronic circuits
•  Selecting and using electrical measuring and testing devices
•  Measurement and evaluation of electrical values and signals
•  Encoding control units, customizing software versions and checking data communication lines, in compliance with legal and manufacturer-related provisions
•  Documenting work results and evaluate by comparing with calculated values ??and manufacturer specifications
• Equipment
•  T-Varia system panel 956mm x 250mm x 6mm, suitable for T-Varia trolley
•  Design with colored digital print behind 2mm thick plexiglass, schematics and symbols, two chrome-plated handles for easy handling, as well as backside cover
•  2 x rear lights in modern LED design with the functions rear light, brake light and turn signal
•  1 x license plate light in LED design
•  1 x third brake light with at total of 7 lamps which can also be replaced if defective
•  1 x rear fog light in modern clear glass design with free-form reflectors and H21W halogen bulb
•  1 x reversing light in modern clear glass design with free-form reflectors and 12 V 21 W P21W bulb
•  1 x trailer socket in 13-pin design
•  1 x CAN-Bus trailer control unit J345
