Power Supply Unit 3-15 V / 40 A / 600 W

Price on application
Lab power supply unit 3-15 V and 40 A with LED display for voltage and current. This unit features an electrically separated, linear-control DC output that is short-circuit-proof and isolated from the housing. The output voltage can be adjusted continuously from 3 to 15 V via potentiometer and is displayed by a digital instrument. The output current is electronically limited to 40 A.

  • Power

Delivery time 1 - 2 weeks

Lab power supply unit 3-15 V and 40 A with LED display for voltage and current. This unit features an electrically separated, linear-control DC output that is short-circuit-proof and isolated from the housing. The output voltage can be adjusted continuously from 3 to 15 V via potentiometer and is displayed by a digital instrument. The output current is electronically limited to 40 A.

For further protection, the power transistors are monitored by a temperature sensor that will switch the unit off in case of a shorted output as soon as a temperature limit has been reached, and will switch the unit on again aftertemperature has returned to normal operating values. The unit features a well designed, sturdy desk top housing withbuilt-in handle, that also serves as a stand.

Technical Data:
output potential free, ground-free
output voltage 3 - 15 V continually adjustable
output current max. 40 A
display (voltage) digital display
polarity reversal protection current limitation with automatic overload safety

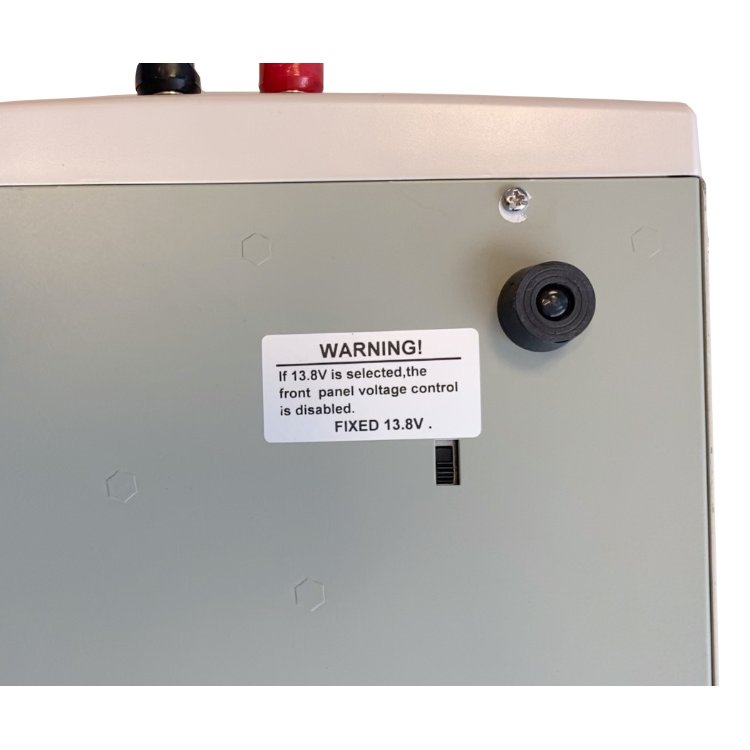

*Note: The 40A version offers a slide switch on the bottom side for fixed setting to 13.8 Volt (see picture 2). This is very suitable for use with our T-Varia products.

Manufacturer:
Category: Others and Accessories
Item number: 10138100
Power Supply‍: 110 V - 240 V / 50 - 60 Hz
Product weight‍: 4,50 Kg
Dimensions ( length width height )‍: 31,00 22,00 11,00 cm
